 14 Pin Relay board connector, Same for all cars? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| 914werke |
  Mar 16 2026, 07:05 PM
Post
#1
|
|
"I got blisters on me fingers"  Group: Members Posts: 11,580 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest
 |
Typically ..Im troubleshooting a Cust. car were someone thought it was a good idea to hack off pins & reroute circuits (IMG:style_emoticons/default/WTF.gif)

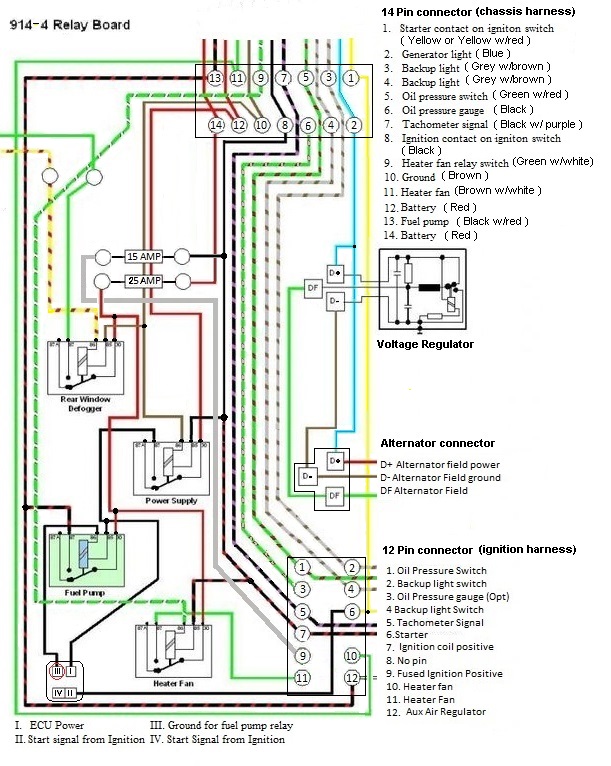

Did a bit of searching for the correct position & color coding of the contained wires. I have a couple of cars around here that I could pull the cover off to check (IMG:style_emoticons/default/wacko.gif) but its dark & raining & Im lazy. (IMG:style_emoticons/default/ar15.gif) The question du jour is do all chassis harnesses have generally the same wire color scheme ? I did notice some use a solid Yellow vs Yellow w/ red for Pin #1 but the rest seems pretty consistent, except for Pin #6 = Oil press (black) Some cars have it others dont (empty) is this normal? (IMG:style_emoticons/default/slap.gif) |
   |

|
| TRP |
Mar 16 2026, 08:08 PM
Post
#2
|
|
Member Group: Members Posts: 247 Joined: 2-September 23 From: Morgan Hill, CA Member No.: 27,559 Region Association: None
|
This is a question for @JeffBowlsby , He has probably seen more wiring harnesses than anyone!
|
 |
|
| SirAndy |
Mar 16 2026, 08:29 PM
Post
#3
|
|
Resident German Group: Admin Posts: 42,462 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |
There's at least two versions (early vs. late) (might even be three) with several different wires.
(IMG:style_emoticons/default/idea.gif) |
|
|
|
| JeffBowlsby |
Mar 16 2026, 10:03 PM
Post
#4
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 9,212 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
I know that 14pin connector circuits has differences between some of model years. Recommend checking the schematics for model year specifics.
|
|
|
|
| 914werke |
Mar 17 2026, 11:27 AM
Post
#5
|
|
"I got blisters on me fingers" Group: Members Posts: 11,580 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest
|
Differences? They all connect to the same (except the /6) relay board that I know of?
If I wasnt clear I was just curious if on base cars w/o an oil temp in the combo guage or console the wiring was left out? |
|
|
|
| JeffBowlsby |
Mar 17 2026, 12:24 PM
Post
#6
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 9,212 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
The schematics indicate that all years have OT circuits at the 14 pin...except for 1972.
|
|
|
|
| 914werke |
Mar 17 2026, 03:05 PM
Post
#7
|
|
"I got blisters on me fingers" Group: Members Posts: 11,580 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest
|
My error, you are correct I was looking at pin #6 (oil Pressure gauge ?)
 |
|
|
|
| SirAndy |
Mar 17 2026, 07:20 PM
Post
#8
|
|
Resident German Group: Admin Posts: 42,462 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |
QUOTE(914werke @ Mar 17 2026, 10:27 AM)  Differences? They all connect to the same (except the /6) relay board that I know of? If I wasnt clear I was just curious if on base cars w/o an oil temp in the combo guage or console the wiring was left out? Found a thread with pics. There are two wires different early vs. late in the 14 pin /4 connector layout. Pin 11 and Pin 6 Also worth noting that Pin 85 and 86 are filpped on all the relays and the 12 pin connector has a different pin-out as well. http://www.914world.com/bbs2/index.php?showtopic=252880 (IMG:style_emoticons/default/bye1.gif) |
|
|
|
|
