 914/6 - Front Engine Mount, What is the orientation of the NUT plate on top? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| ctc911ctc |
 Sep 17 2025, 04:10 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 1,215 Joined: 9-June 18 From: boston Member No.: 22,206 Region Association: North East States
 |
'70, 914-6 All stock
On the front engine mount, there is a shock mounting system, on the top of this there is a plate with a nut welded within, I am confused as to the orientation I could not find a drawing within the panels at AutoAtlanta, Can anyone provide a pointer? I need to understand the vertical and horizontal orientation, Thank you, CTC911CTC |
   |

|
| sixnotfour |
Sep 18 2025, 12:07 AM
Post
#2
|
|
914 Wizard Group: Members Posts: 10,959 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains
|
Attached image(s)
|
 |
|
| Luke M |
Sep 18 2025, 05:17 AM
Post
#3
|
|
Senior Member Group: Members Posts: 1,423 Joined: 8-February 05 From: WNY Member No.: 3,574 Region Association: North East States
|

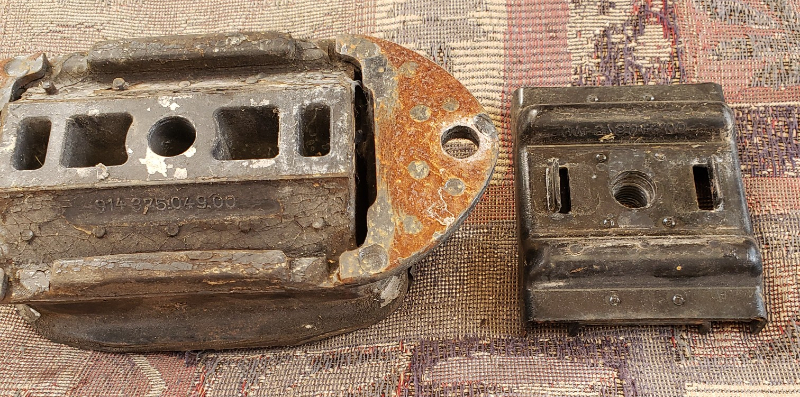

QUOTE(ctc911ctc @ Sep 17 2025, 03:10 PM)  '70, 914-6 All stock On the front engine mount, there is a shock mounting system, on the top of this there is a plate with a nut welded within, I am confused as to the orientation I could not find a drawing within the panels at AutoAtlanta, Can anyone provide a pointer? I need to understand the vertical and horizontal orientation, Thank you, CTC911CTC There's a total of 3 pieces that mount to the firewall mount. The rubber mount, the upper nut plate and the lower plate. Make sure that you have the correct length and pitch bolt for the mount as well. Attached image(s)
|
|
|
|
| ctc911ctc |
Sep 18 2025, 10:01 AM
Post
#4
|
|
Senior Member Group: Members Posts: 1,215 Joined: 9-June 18 From: boston Member No.: 22,206 Region Association: North East States
|
This is terrific,
My question is the top plate - does it sit with the ridges Front to Back or Left to Right. In your picture they are front to back. As pictured the ridges do not sit properly on top of the rubber, however, when left to right they seem to drop into place. Does anyone know if there is a proper orientation? Thank you, CTC911CTC QUOTE(Luke M @ Sep 18 2025, 05:17 AM) QUOTE(ctc911ctc @ Sep 17 2025, 03:10 PM) '70, 914-6 All stock On the front engine mount, there is a shock mounting system, on the top of this there is a plate with a nut welded within, I am confused as to the orientation I could not find a drawing within the panels at AutoAtlanta, Can anyone provide a pointer? I need to understand the vertical and horizontal orientation, Thank you, CTC911CTC There's a total of 3 pieces that mount to the firewall mount. The rubber mount, the upper nut plate and the lower plate. Make sure that you have the correct length and pitch bolt for the mount as well. |
|
|
|
| sixnotfour |
Sep 18 2025, 03:48 PM
Post
#5
|
|
914 Wizard Group: Members Posts: 10,959 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains
|
The 2 channels are what prevents the rubber from pulling through.. There should be 2 tabs that insert into aluminum block within the rubber mount.

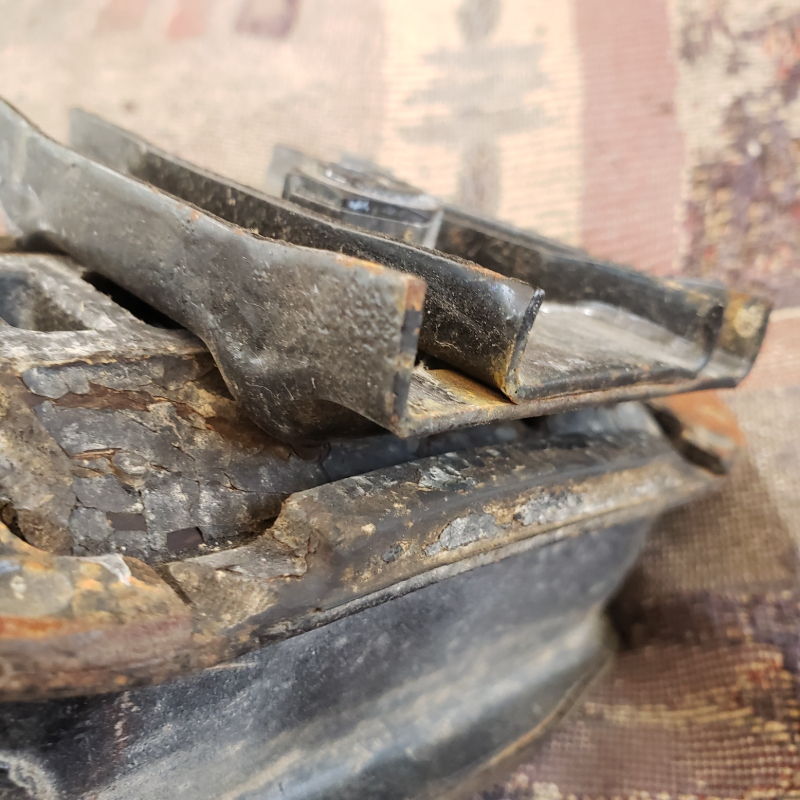

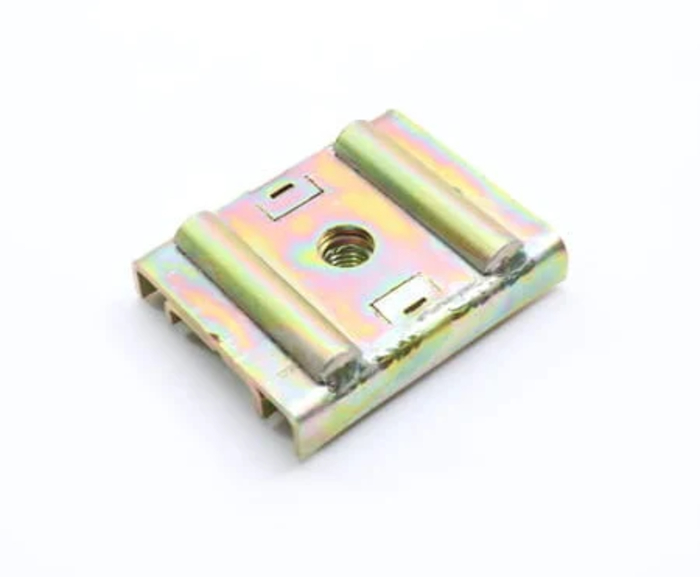

maddog does not appear to bend tabs down like the factory part. The rounded ridges compress into rubber when tightened and when load is applied..note indent on PN on mount pictured..    Attached image(s)
|
|
|
|
| rgalla9146 |
Sep 18 2025, 06:29 PM
Post
#6
|
|
Advanced Member Group: Members Posts: 4,806 Joined: 23-November 05 From: Paramus NJ Member No.: 5,176 Region Association: None
|
Cary your car has a high strength bolt marked 10.9 for the this unusual application.

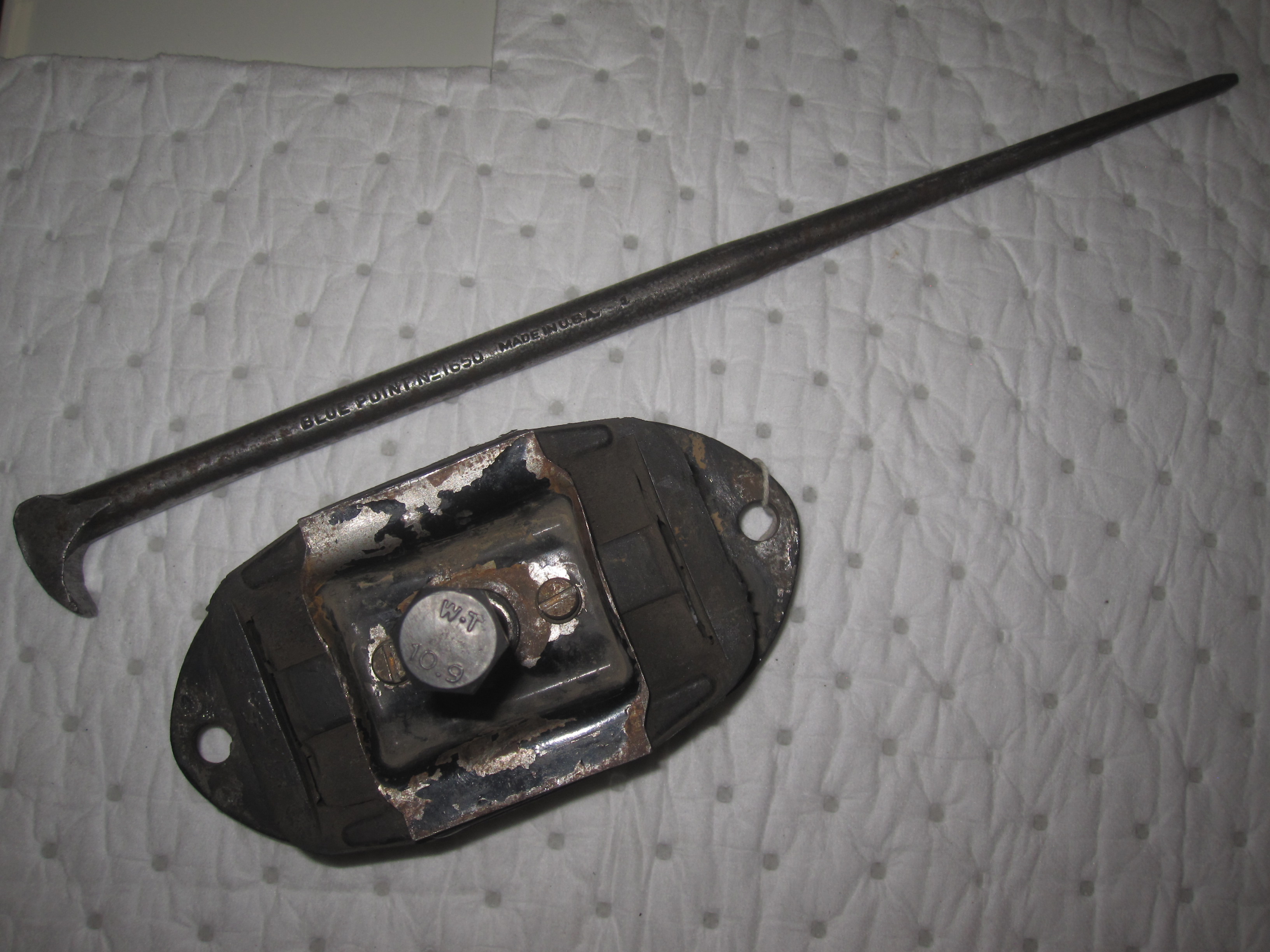

An 8.8 is not suitable The lower plate is attached to the mount with two cheesehead machine screws. If you don't have one, get a 16" drift pin to persuade the front mount into position. Enjoy holding the top plate down as you ratchet the bolt into it. (IMG:style_emoticons/default/biggrin.gif) Attached thumbnail(s)
|
|
|
|
|
