bkrantz |
![]()
Post
#1
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,436 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains ![]() ![]() |
Mine is too stiff, I think. Oh, the thing I mean is the internal door latch mechanism. And the part that seems stiff is the locking function.
In case your never spent any intimate time with the mechanism, the locking function is done by a stamped plate that shifts up (to lock) and down (to unlock). I continue to have problems unlocking the doors with keys, even after Curt did his magic on the cylinders. Since the up-down shift of the locking plate is accomplished by the little lever on the internal end of the cylinder, as twisted by the key, so it would seem to be better if the plate shifted without much resistance. Oh, and I have tried some different lubes. Attached thumbnail(s) ![]() |
76-914 |
![]()
Post
#2
|
Repeat Offender & Resident Subaru Antagonist ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 13,737 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California ![]() ![]() |
Mine is too stiff, I think. Oh, the thing I mean is the internal door latch mechanism. And the part that seems stiff is the locking function. In case your never spent any intimate time with the mechanism, the locking function is done by a stamped plate that shifts up (to lock) and down (to unlock). I continue to have problems unlocking the doors with keys, even after Curt did his magic on the cylinders. Since the up-down shift of the locking plate is accomplished by the little lever on the internal end of the cylinder, as twisted by the key, so it would seem to be better if the plate shifted without much resistance. Oh, and I have tried some different lubes. I remember (IMG:style_emoticons/default/sheeplove.gif) with that Bob. Let me get a look at one in my stash so I can better describe the issue I had. I remember it was a spot that served to anchor a part while providing a rotational pivot point. Metal to metal. No amount of cleaning, soaking or oiling helped much or for any amount of time. (IMG:style_emoticons/default/beerchug.gif) |
mlindner |
![]()
Post
#3
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 1,688 Joined: 11-November 11 From: Merrimac, WI Member No.: 13,770 Region Association: Upper MidWest ![]() ![]() |
I had the same problem for years. After I had the car complete the locks came out cleaned, lubed.....still stiff. I did not need the locking portion so I took that locking spring off. Problem went away, just FYI
|
mmichalik |
![]()
Post
#4
|
MikeM ![]() ![]() ![]() Group: Members Posts: 771 Joined: 27-January 16 From: Valley Center, CA Member No.: 19,600 Region Association: Southern California ![]() ![]() |
I had the same issue with my 75. I took the same mechanism out and thoroughly cleaned it using a toothbrush and a metal dental pick.
The 50 year old grease on mine was as hard as a rock but once I cleaned it and relubed it, it was like new. Not sure if you did that already so I thought I would throw it out there |
bkrantz |
![]()
Post
#5
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,436 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains ![]() ![]() |
Thanks, guys. Here is an annotated version of the photo that shows what I think is going on.
The dashed red outline is the locking plate. This is attached to the main latch base only at the bottom (right side) by a permanent rivet, with the large circular washer. The locking plate shifts up and down (left and right--red arrows). The locking plate also rotates around the rivet, which is how lifting the outer door handle unlatches the closed door. As it does so, it also rotates the lever (dashed blue outline) which then moves the long rod on the door forward or back (blue arrow). The rod connects to the inside door lock button that either sits flush with the inside handle or pokes out. Of course this linkage also works in reverse, and moving the inside lock button moves the rod which moves the lever (blue outline) which shifts the locking plate (red outline) up or down. The green arrow shows where the locking plate and door bar level meet. First of all, what mad scientist came up with this design? Did the Porsche/Karmann families have some clever but insane cousin they kept locked in the basement? Second, the resistance to shifting the locking plate seems to be (1) the lower pivot (rivet), (2) the pivot for the locking bar rod lever, and (3) the drag along the long rod and and internal door lock button plus the miscellaneous contacts of all the parts. On this latch I am pretty sure the lower pivot is pretty loose. I am not sure about the rod lever pivot. I will check that out. My concern is that twisting the key, which rotates the little arm on the inside of the cylinder, has to do LOTS of work, and can bind. Third, do I really need the internal door lock button to function? If not, at least I can at least disconnect the rod, and the drag of all the stuff "downstream". I could even disconnect the rod lever (as mlinder suggested)--just by removing the spring? Attached image(s) ![]() |
Chris914n6 |
![]()
Post
#6
|
Jackstands are my life. ![]() ![]() ![]() ![]() Group: Members Posts: 3,491 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region ![]() |
You didn't say what you used to clean and grease. WD40 works great at softening the old grease. Spray and work the mechanism til it's effortless. White lithium is pretty much the goto for everything these days.
|
ClayPerrine |
![]()
Post
#7
|
Life's been good to me so far..... ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 16,439 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille ![]() ![]() |
An addendum.
About every 2 years or so I pull them, clean them, regrease them and reinstall them. I also pull the door lock cylinders from the outer handles to for cleaning and lubrication. That keeps the release cam on the outer door handle from breaking. I just clean them with spray Berrymans B-12. Then let them dry and regrease them with white lithium grease. |
Front yard mechanic |
![]()
Post
#8
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 1,350 Joined: 23-July 15 From: New Mexico Member No.: 18,984 Region Association: None ![]() ![]() |
Not to soft but it sure is short
|
Artfrombama |
![]()
Post
#9
|
Member ![]() ![]() Group: Members Posts: 331 Joined: 21-January 24 From: Huntsville, Alabama Member No.: 27,870 Region Association: South East States ![]() ![]() |
An addendum. About every 2 years or so I pull them, clean them, regrease them and reinstall them. I also pull the door lock cylinders from the outer handles to for cleaning and lubrication. That keeps the release cam on the outer door handle from breaking. I just clean them with spray Berrymans B-12. Then let them dry and regrease them with white lithium grease. THIS works really well. No grease, graphite, teflon etc. but works magic on lock assemblies. |
bkrantz |
![]()
Post
#10
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,436 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains ![]() ![]() |
OK, I decided to try some new ideas.

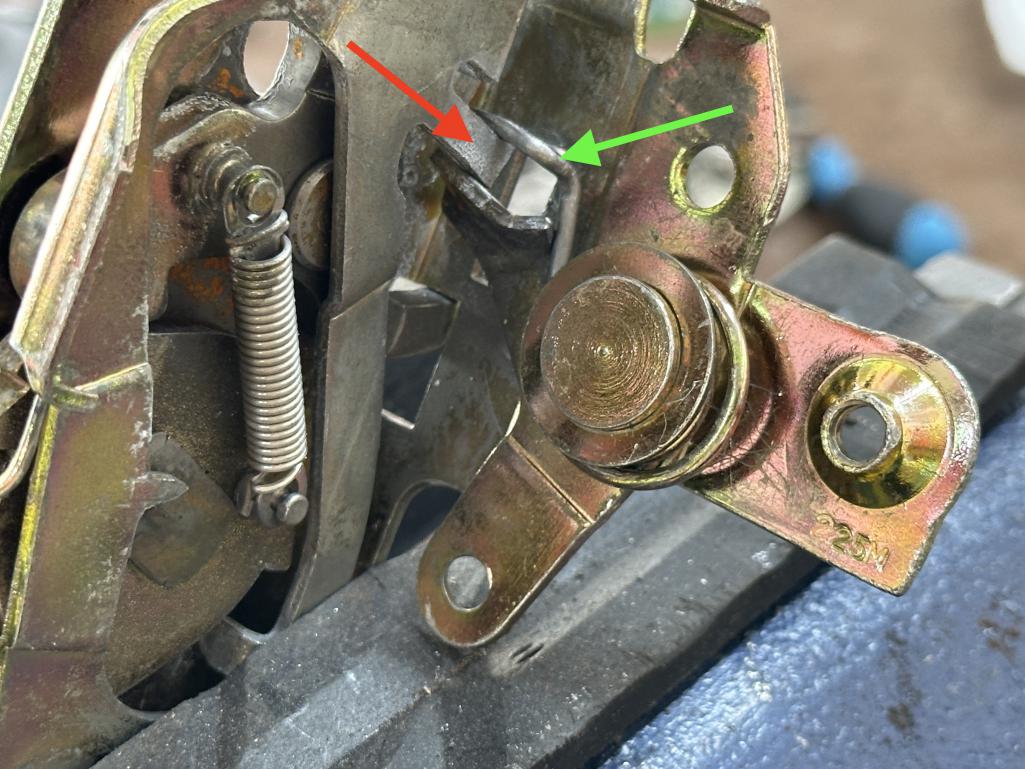

First, I will try the passenger door without internal lock/unlock function. I can still do that from outside with the key. Here is the lock in stock form, with the lock rod pivot spring in place. The end of the spring (green arrow) traps the tab (red arrow) that is part of the locking plate. With the tab trapped to lock or unlock the latch, the pivot rotates and also moves the rod that goes down to the internal handle. In this state, the locking plate requires a lot of effort to shift up and down. Attached thumbnail(s) ![]() |
bkrantz |
![]()
Post
#11
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,436 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains ![]() ![]() |

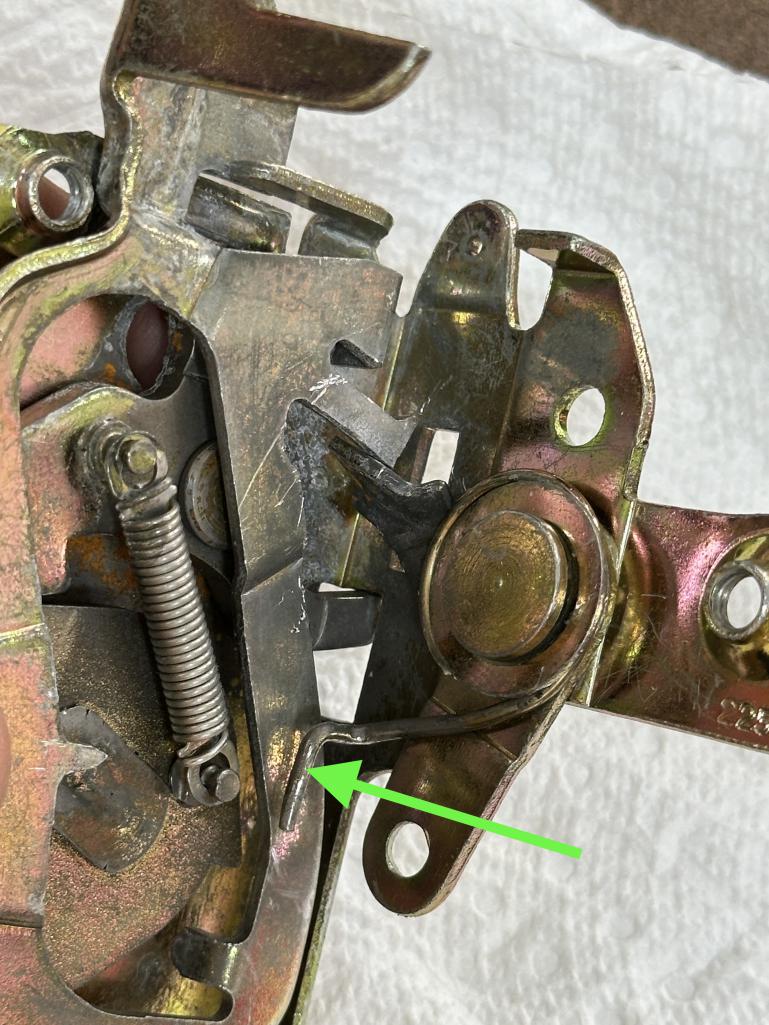

I pulled and twisted the spring (green arrow) so that it no longer traps the lock plate tab, and it also releases the torsion on the locking rod pivot.
Attached thumbnail(s) ![]() |
bkrantz |
![]()
Post
#12
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,436 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains ![]() ![]() |

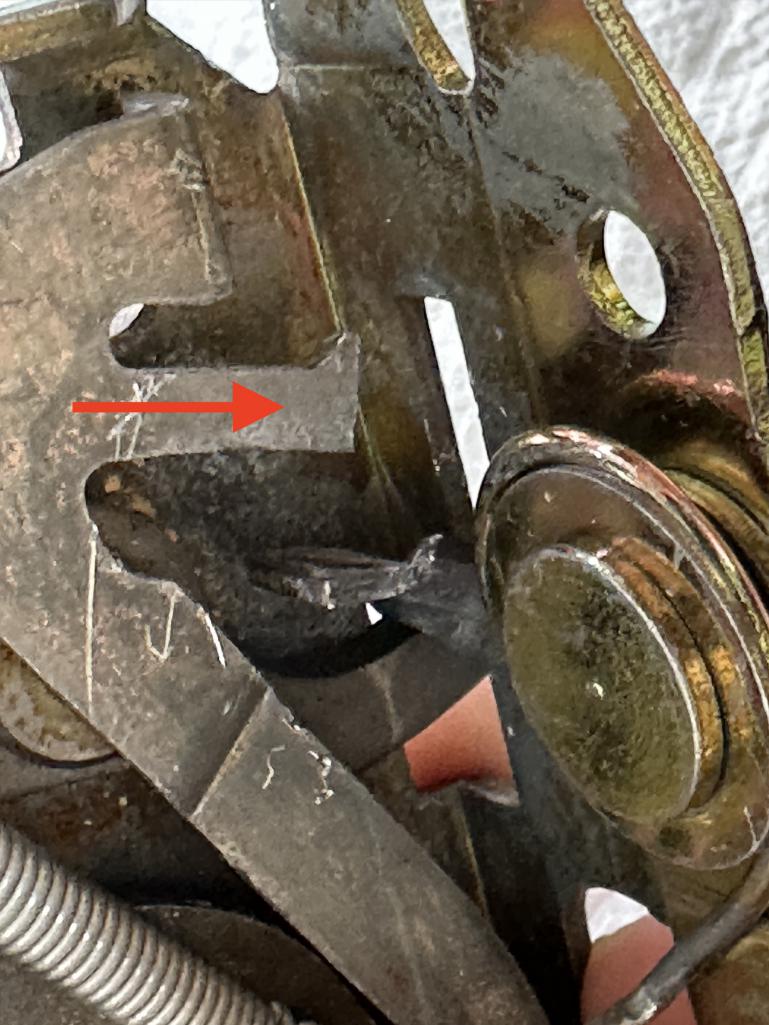

Now the locking plate and tab (red arrow) can shift without moving the pivot. This cut the resistance in shifting the plate by more than half, and that's without the rod and linkage to the internal lock button.
Attached thumbnail(s) ![]() |
bkrantz |
![]()
Post
#13
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,436 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains ![]() ![]() |

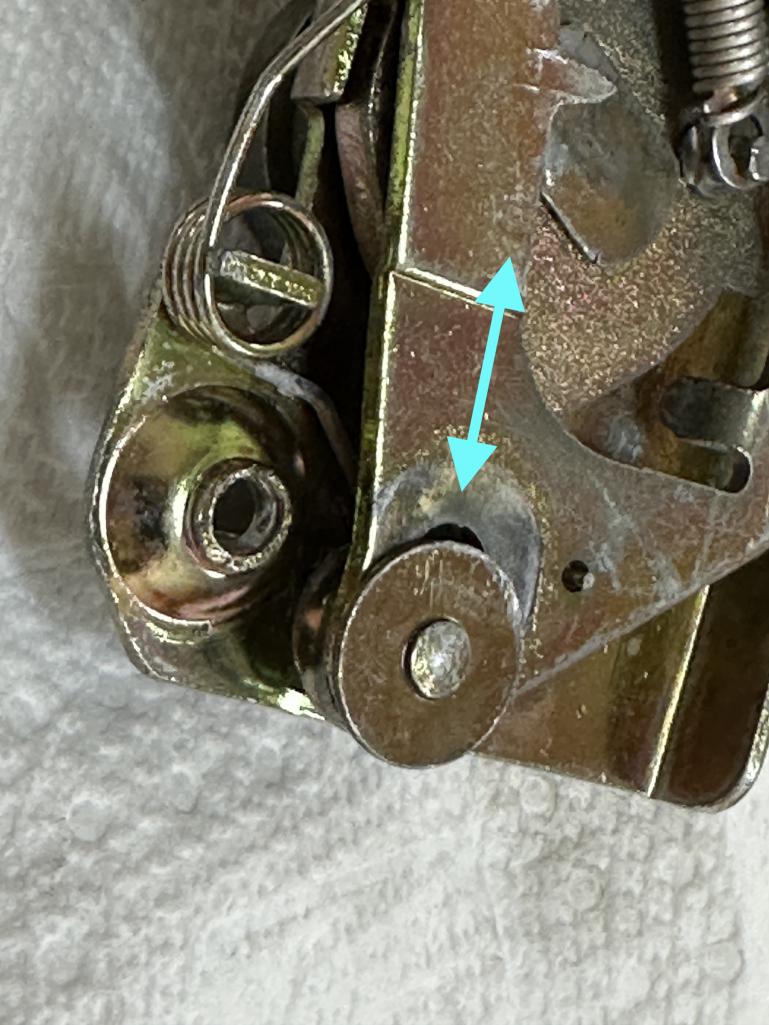

The only friction for the locking plate now is the lower rivet and washers. And this is not a tight fit.
Attached thumbnail(s) ![]() |
bkrantz |
![]()
Post
#14
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,436 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains ![]() ![]() |

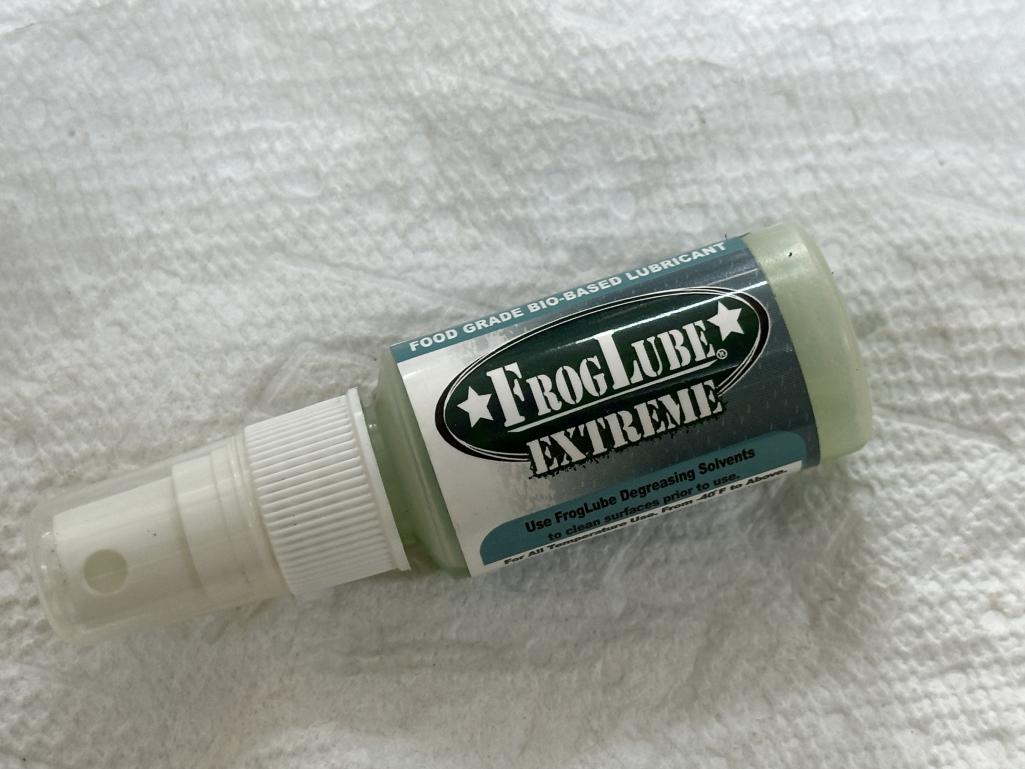

My second innovation is to try a different lube strategy. This is Frog Lube, created for guns. it goes on wet and then dries to a very durable film. See my other thread for more info.
Worst case is I have to open the door again and apply old-fashioned grease. Attached thumbnail(s) ![]() |
bkrantz |
![]()
Post
#15
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,436 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains ![]() ![]() |
Internal latch back in place. I did have to connect the rod from the inside handle to the pivot in order to open the door from the inside. This does not affect the locking action or drag on the latch lock plate.
Attached thumbnail(s) ![]() |
bkrantz |
![]()
Post
#16
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,436 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains ![]() ![]() |

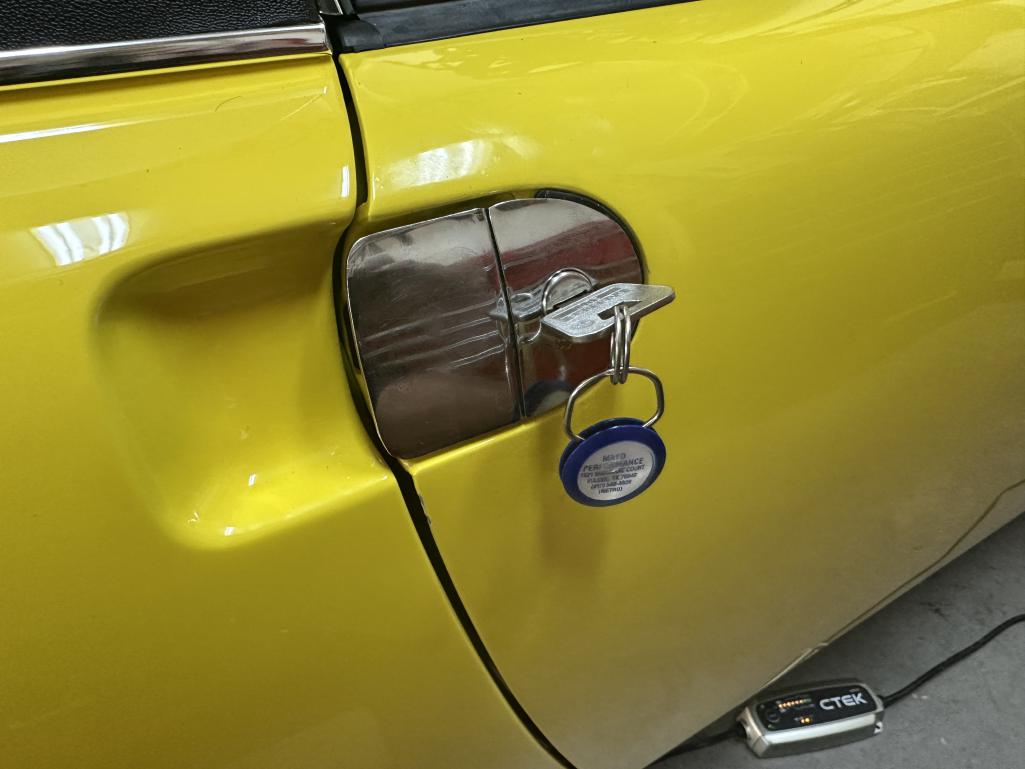

External handle installed--and tested.
Seems like I got what iI want. Using the key is very easy to lock and unlock the door. The internal lock button does nothing, but the internal handle opens the door as always. If this works out, I will do the same thing to the left door. Attached thumbnail(s) ![]() |
![]() ![]() |
![]() |
